12-Key Keypad
Blink Marine PKP-2600-SI series keypad preconfigured for use with the MicroPDM.

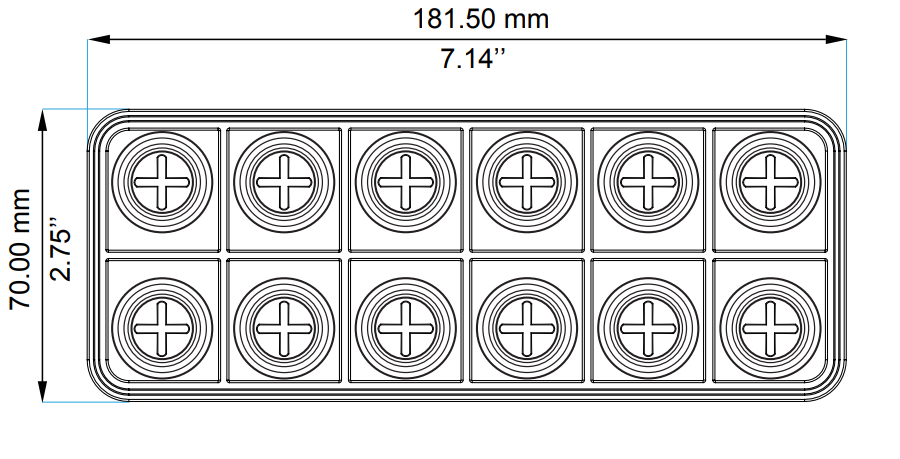

The PKP-2600-SI is a compact CAN keypad equipped with twelve keys that accommodate interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. LED lights in RGB colors and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
When paired with our Rapid Enclosures and keypad cables, these make for a plug and play installation.
The keypads are designed for the harshest motorsport conditions. They have an IP67 rating, protecting them from water, mud, soil, sand, oil, and chemicals.
Blink Marine PKP-2600-SI series keypad preconfigured for use with the MicroPDM.
The PKP-2600-SI is a compact CAN keypad equipped with twelve keys that accommodate interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. LED lights in RGB colors and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
When paired with our Rapid Enclosures and keypad cables, these make for a plug and play installation.
The keypads are designed for the harshest motorsport conditions. They have an IP67 rating, protecting them from water, mud, soil, sand, oil, and chemicals.
Blink Marine PKP-2600-SI series keypad preconfigured for use with the MicroPDM.
The PKP-2600-SI is a compact CAN keypad equipped with twelve keys that accommodate interchangeable 15 mm inserts. The keypad is water and dust resistant, and can be installed both inside and outside the cockpit. LED lights in RGB colors and the ease with which icons can be switched in and out make it possible for the user to customize each key in a wide range of variations.
When paired with our Rapid Enclosures and keypad cables, these make for a plug and play installation.
The keypads are designed for the harshest motorsport conditions. They have an IP67 rating, protecting them from water, mud, soil, sand, oil, and chemicals.
The MicroPDM works with most Blink Marine PKP-SI series keypads as long as they use the standard firmware (not Blink Marine’s motorsports firmware) and are configured for the CANopen protocol , 1 mbit/sec baud rate, and use a node id of 15. All other configuration options should be kept as default.
Keypads purchased from us can work with other vendor’s PDMs, as long as those PDMs can be configured to support CANopen, 1mbit/sec baud rate and node id of 15. Alternatively, keypads can be reconfigured by the customer over CAN by following Blink Marine’s documented configuration instructions.
The following keypads have been tested to work with the MicroPDM:
PKP-2200-SI
PKP-2300-SI
PKP-2400-SI
PKP-2600-SI
PKP-2600-SI-V2
PKP-2200-LI
PKP-2400-LI
